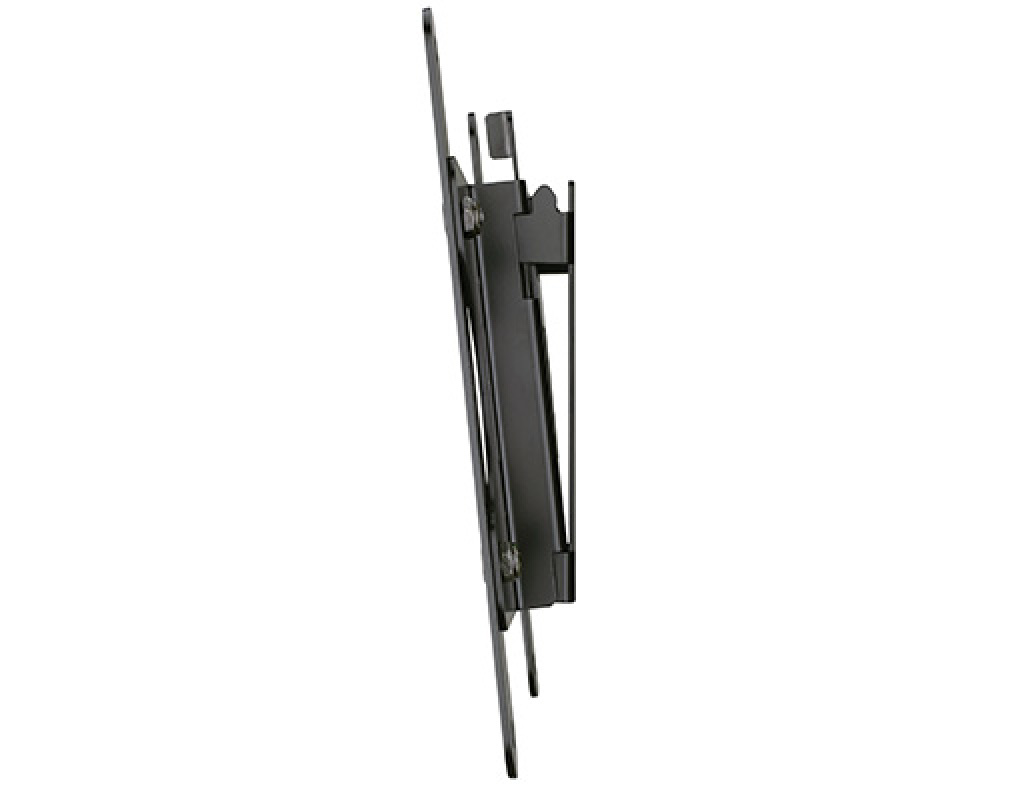

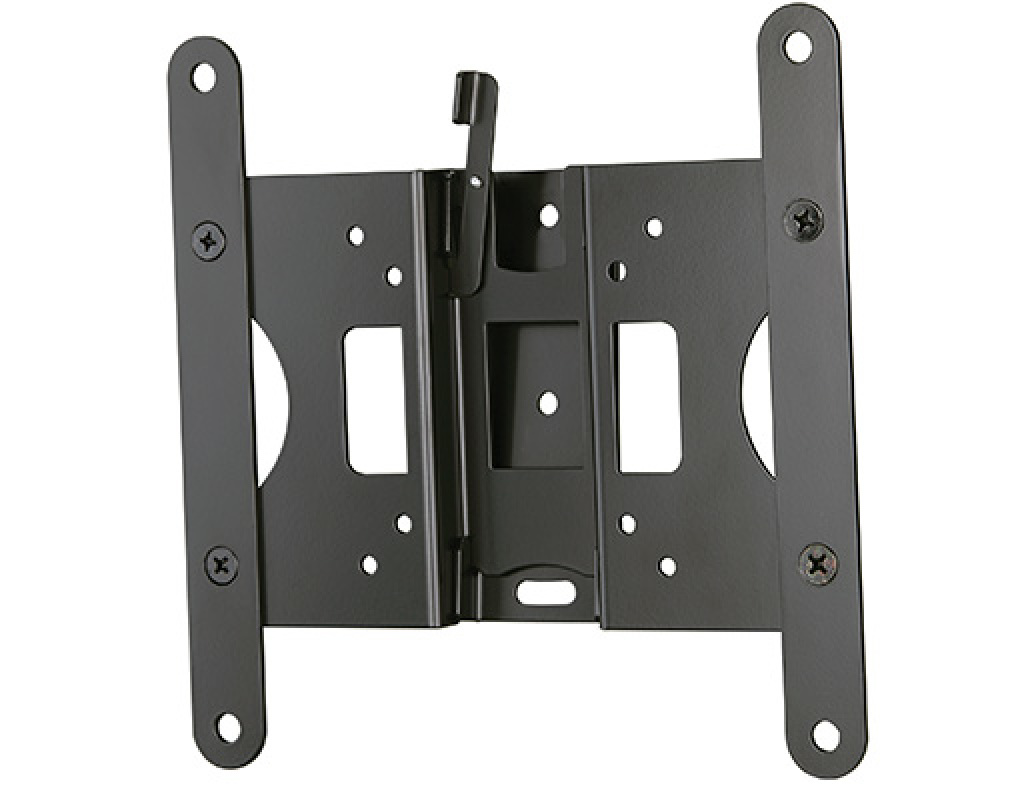

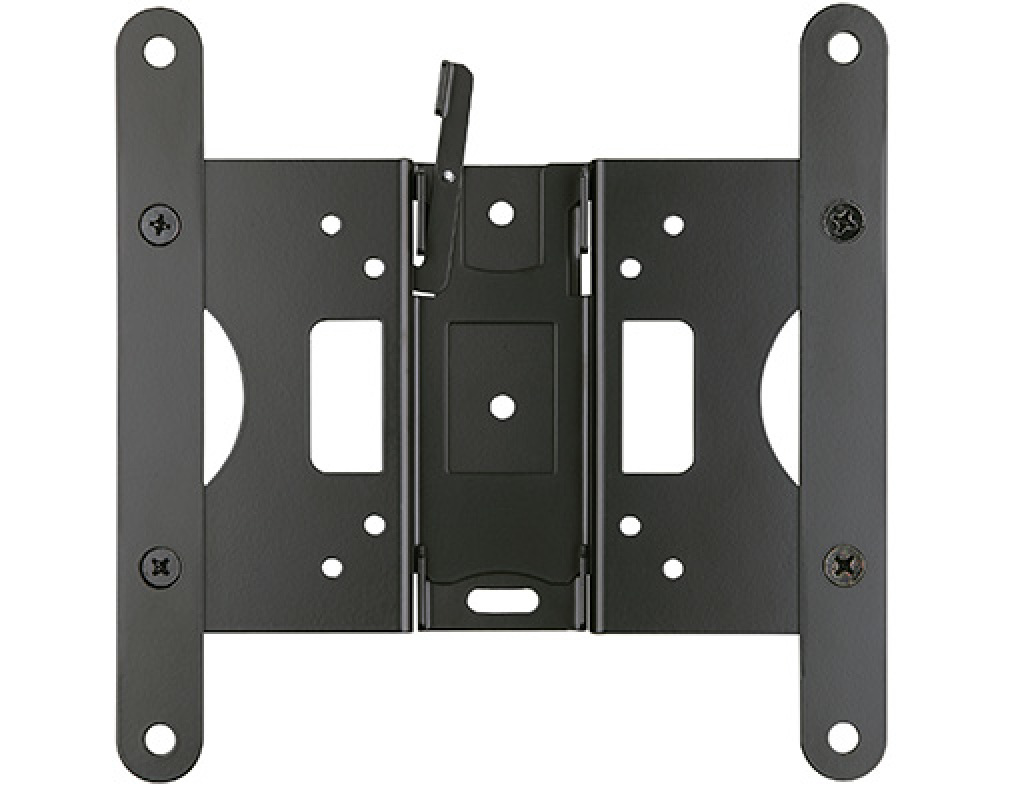

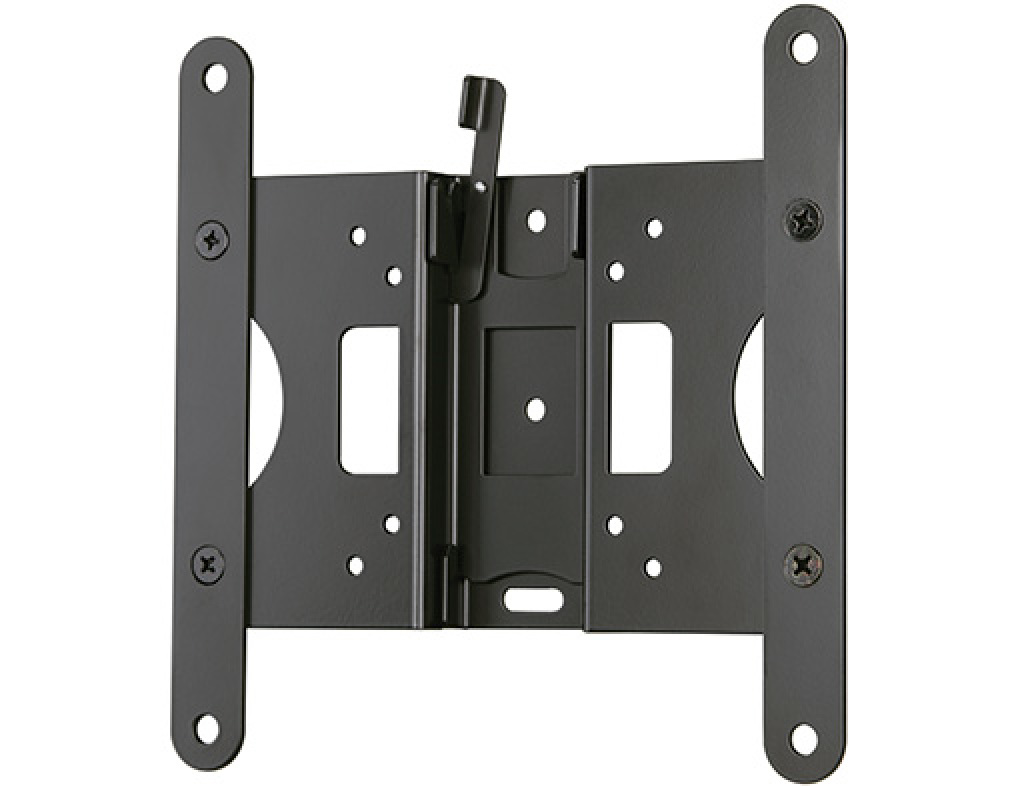

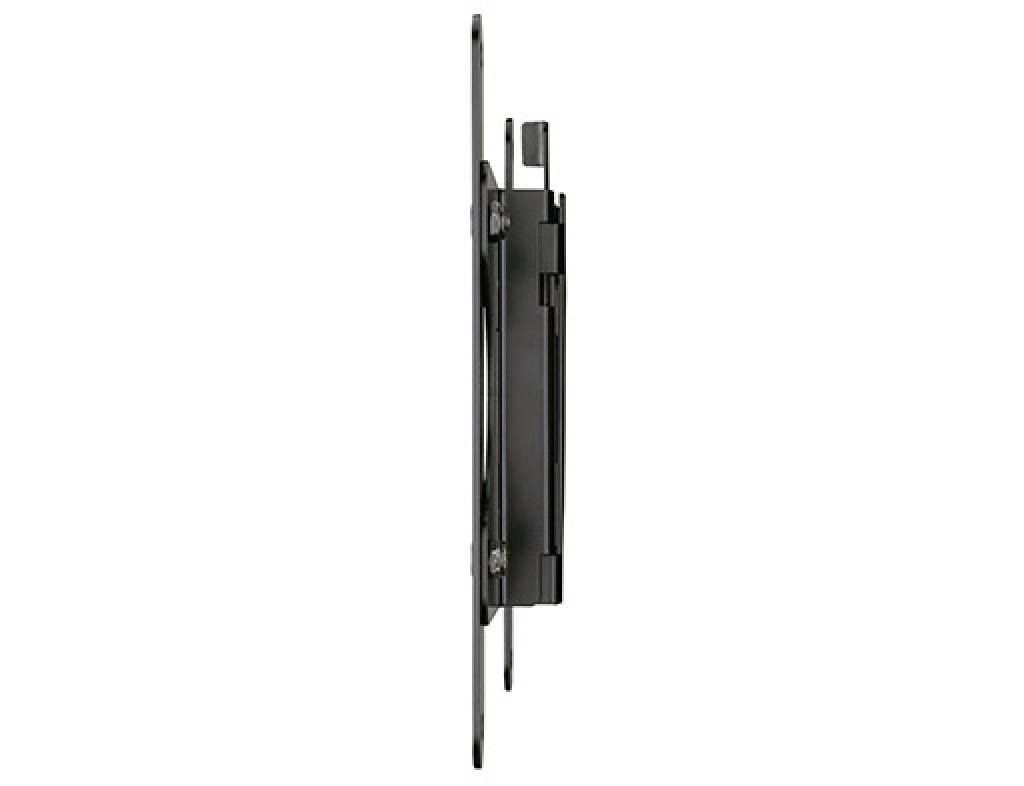

Tilting Wall Mount For flat-panel TVs up to 40”
QST25
- Fits TVs 10" - 40"
- Depth 2.39cm
- Tilting 0° / -6°
-
Safety Tested and UL Certified
Safety tested and UL Certified
Will this work with my TV?
Enter the model number of your TV to find out.
Here are a few products that are compatible with your TV!
Tilting Wall Mount For flat-panel TVs up to 40”

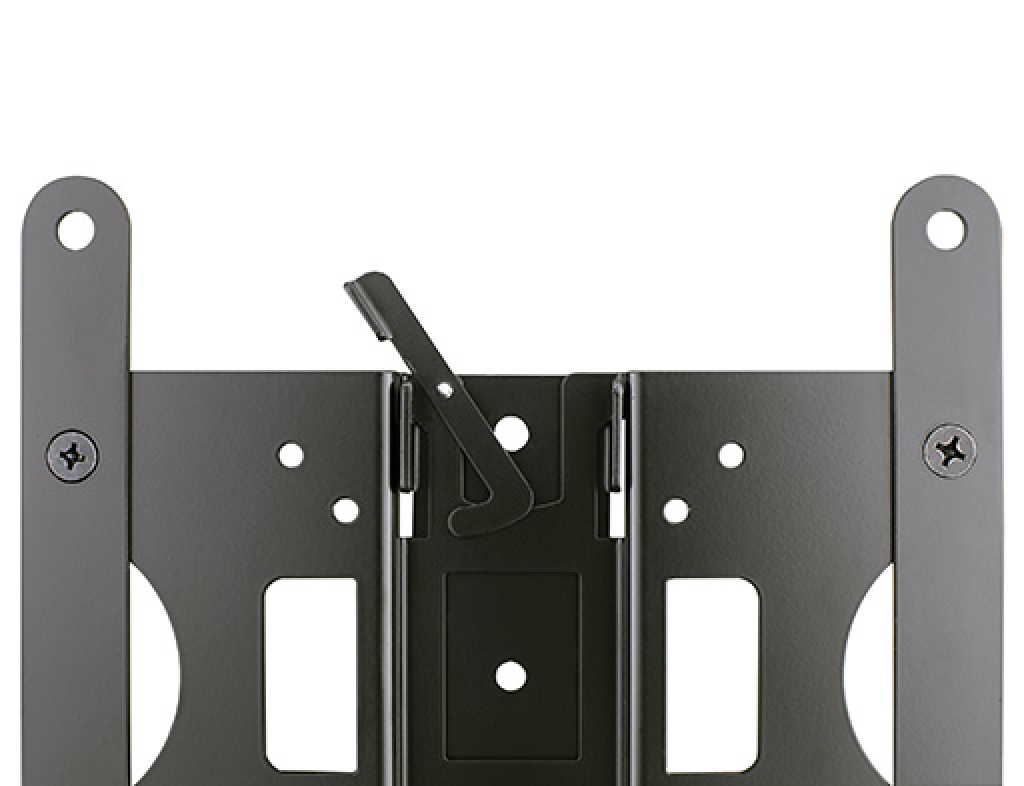

The QST25-B2 is a tilting wall mount flat-panel TVs up to 40” and 35 lbs. Features a fixed 6º tilt position and adapter brackets to fit VESA patterns up to 200 x 200. The QST25-B2 can be installed in three easy steps: Attach brackets to TV, attach wall plate to wall, hang TV on wall plate. Locking system secures TV to wall for added safety. Mounting brackets fit most TVs up to 40".
Product Features
Tools You Will Need For Installation
-
7/32" Drill Bit
-
3/8" Masonry Bit (Concrete Installations)
-
1/2" Socket Wrench
-
Awl
-
Electric Drill
-
Hammer
-
Level
-
Pencil
-
Phillips Head Screwdriver
-
Stud Finder
-
Tape Measure
The Details
| Product Brand: | Secura |
|---|---|
| Model Code: | QST25 |
| UPC Code: | 793795530714 - Black |
| Product Width: | 8.87" / 22.53cm |
| Product Height: | 8.87" / 22.53cm |
| Product Depth: | 0.94" / 2.39cm |
| TV Size Range: | 10" - 40" / 25.40cm - 101.60cm |
|---|---|
| Maximum TV Weight: | 35lbs / 15.88kg |
| Supported VESA Patterns |
|
| Tilt: | 0° / -6° |
